Warm Ice and cold ice crack differently.

Researchers at Aalto University in Finland have found strong evidence that warm ice – that is, ice very close in temperature to zero degrees Celsius – may fracture differently than the kinds of ice typically studied in laboratories or nature. A new study published in The Cryosphere takes a closer look at the phenomenon, studied at the world’s largest indoor ice tank on Aalto’s campus.

Understanding how ice breaks is crucial for ensuring safe harbours and bridges in cool climates, as well as transportation through historically ice-heavy regions. As global warming brings changes to once-predictable seasonal conditions, the rules underpinning infrastructure engineering are being tested across borders and continents.

‘We need to study warm ice because it’s what we’re seeing in nature; global warming is happening. The mechanical properties of ice and how it responds to force may be fundamentally different when it’s warm rather than cold, as we traditionally study it,’ says Iman El Gharamti, lead author of the paper and doctoral student at Aalto University.


Changes in movement may indicate possible Alzheimer’s onset.
As people go about their daily activities, complex fluctuations in their movement …
High levels of LDL receptors may be associated with Alzheimer’s risk.
By the time people with Alzheimer's disease start exhibiting difficulty remembering and …
No escape route for Florida’s troubled coral reefs.
Warming seas are driving many species of marine life to shift their …
The more we learn about plastics, the worse they seem.
Plastic is practical, cheap and incredibly popular. Every year, more than 350 …

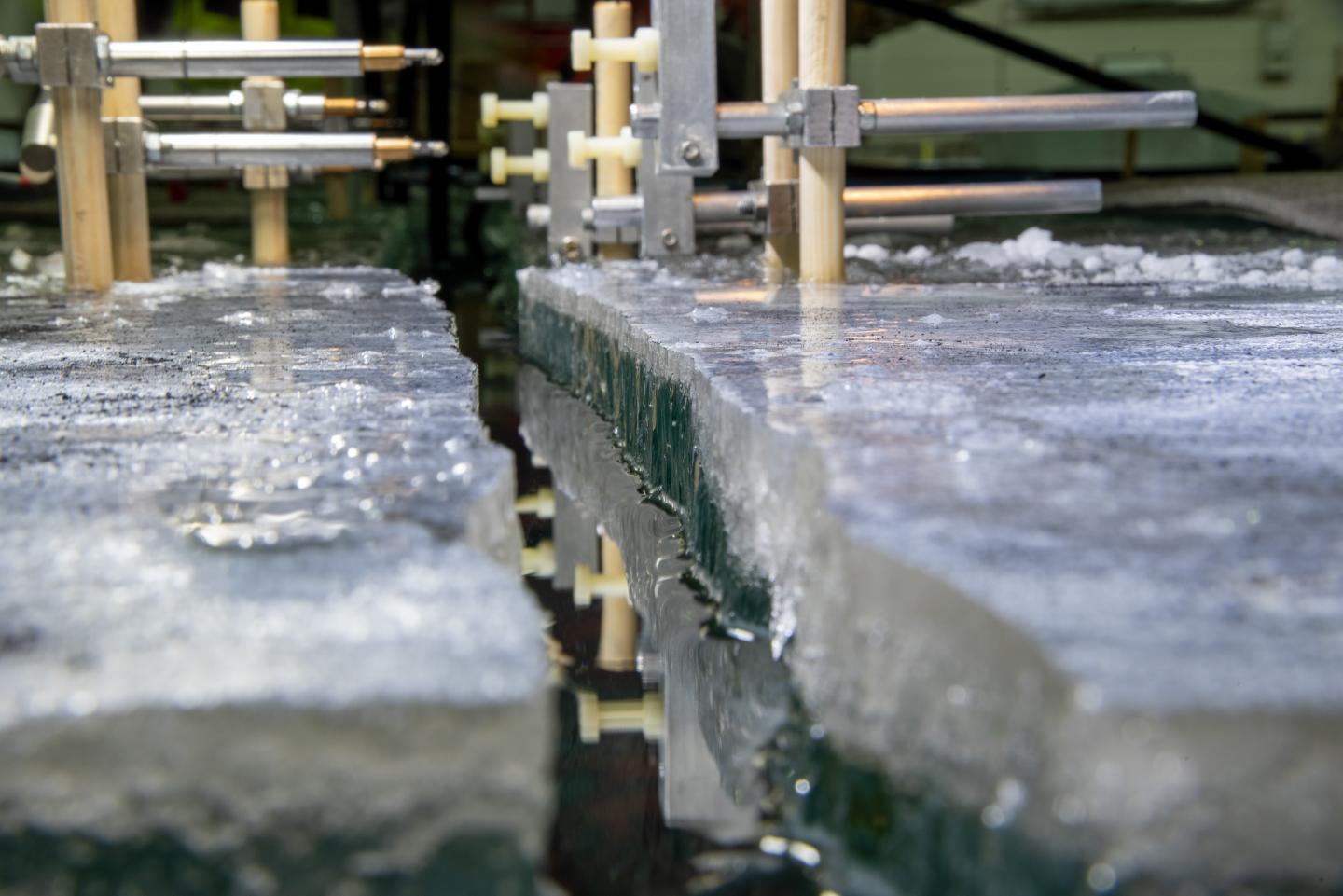

To study how warm ice responds to repeated rounds of force – known in the field as cyclical mechanical loading, which simulates conditions in nature – the team made use of Aalto University’s Ice Tank. Measuring 40 metres wide by 40 metres long, the 2.8m-deep basin is considered to be largest of its kind.

Typically ice fractures are studied in small scales, often just 10-20 centimetres in length, at temperatures of -10 degrees Celsius or colder. In this study, the team used more than one-foot-thick ice sheets of fresh water measuring 3 by 6 metres. They also precisely controlled the ambient air temperature, and the ice was, in frozen terms, warm at a balmy -0.3 degrees Celsius.

With a hydraulic loading device the team applied multiple rounds of loading and unloading on the ice. Current understanding in the field suggests that ice will show viscoelastic recovery – separate from the immediate elastic response, it is a time-related, delayed elastic response – between loads, at least until the device is told to exert enough force to completely split the ice.

Under the conditions provided, however, the ice behaved in an unexpected way: it showed some elastic recovery but no significant viscoelastic recovery at all. In fact, the ice was permanently deformed.

‘What we typically see between mechanical loads is that the ice recovers – it springs back to normal formation until we intentionally apply so much force that it permanently cracks. In our research, the ice was increasingly deformed after each load and we detected no significant delayed elastic recovery,’ explains El Gharamti.

The main contributing factor seems to be the temperature of the ice. This research is the first to show warm ice may behave in a fundamentally different way than the cold ice normally studied.

‘The fact that the ice didn’t show delayed elastic response doesn’t fit our conventional understanding of how ice copes with repeated rounds of force. We believe that this is because of how the granular level of ice behaves when warm, but we still need to do more research to find out what’s going on,’ says Jukka Tuhkuri, professor of solid mechanics at Aalto University.

As warmer conditions are increasingly expected in previously frigid regions like the Great Lakes or Baltic Sea – one of the world’s busiest marine areas – Tuhkuri says its crucial to understand the mechanics of warm ice.

‘A long-term ice load measurement on an icebreaker in the Baltic Sea has previously shown, surprisingly, that the largest ice load occurred during spring, when weather warms up. If our ships and infrastructure like bridges and wind turbines have been designed for fairly predictable seasons, we need to know what happens when global warming brings new conditions. It looks like the old rules may not hold up,’ Tuhkuri says.

WORDS: Iman El Gharamti/Aalto University.
